Contact Form : DPDT

Max. Allowable Current : 2A

Coil Type : Standard DC , Medium DC , High DC

Features

• Gold Silver alloy contact good for low switching application.

• 2.54mm terminal pitch employment equivalent to I.C. Terminal.

• Different types of coil sensitivity available to meet user’s selection.

• Plastic epoxy resin sealed type for washing procedure.

• Comply with RoHS and REACH regulations.

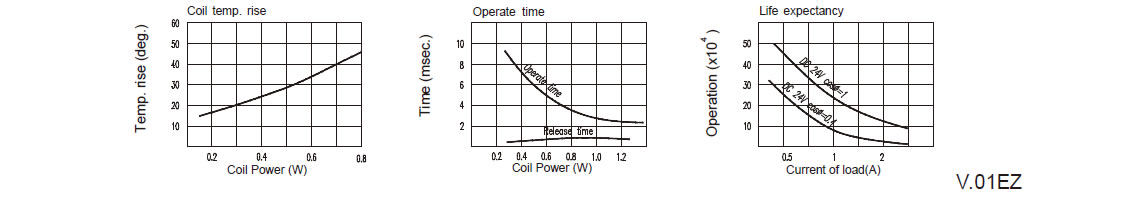

Reference Data
