1,体积小,重量轻Small Size and light weight.
2,触点负载大(40A) Contact load capacity up to 40A.
3,供汽车配套使用Suitable for automobile and lamp accessories application.
4,具有插入式和印刷线路板式两种安装方式 PC Board mounting and direct insert mounting available.

订货信息 Ordering information

CRST 4141--C-S-DC12V--P---R
   1      2 3   4   5  6

1,型号 Part number: CRST4141             2,触点形式 Contact arrangement:A:1A(40A);B:1B(30A);C:1C(30/40A)
3,封装形式:S:试水式;无:防尘式   Enclosure: S:Sealed type; Z:Dust cover
4,线圈额定电压Coil rated voltage(V):DC:6,9,12,24
5,引出端 Terminals: P:PCB Type; Nil: Plug in type
6,线圈瞬态抑制:R:带电阻;无:标准式 Coil transient suppression: R:with Resistance; Nil: Standard

触点数据 Contact data

触点形式 Contact Arrangement

1A(1H)(SPST NO);1B(SPST NC);1C(1Z)(SPDT)

触点材料 Contact Material

AgNi, AgSnO₂, AgCdO

触点负载(阻性) Conatct Rating(Resistive)

1A(40A/14VDC)  1B(30A/14VDC)   1C(NO:30A/40A/14VDC)

最大切换功率Max.Switching Power

560W

最大切换电压 Max.Switching Voltage

30VDC  最大切换电流Max.Switching Current:40A

触点阻性或压降 Contact Resistance or Voltage Drop

≤100mΩ

寿命 Operation Life

电气 Electrical

10⁵

机械 Mechanical

10⁷

线圈参数 Coil Parameter

线圈电压
Coil voltage
(VDC)

线圈电阻
Coil Resistance
Ω±10%

吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage)

释放电压VDC
Release voltage VDC(Min)
(额定电压的10%)
(10% of rated voltage)

线圈功耗
Coil power consumption
(W)

动作时间
Operate Time
(mS)

释放时间
Release Time
(mS)

额定
Rated

最大
Max

12

15.6

90.0

9.0

1.2

1.6

≤10

≤10

24

31.2

320

18.0

2.4

1.8

绝缘电阻 Insulation Resistance

最少 100MΩ min(at 500VDC)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil

50Hz 500V
50Hz 500V

耐冲击 Shock Resistance

147m/s2   11ms

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

8N  4N(PCB)

可焊性 Solderability

235±2℃   3±0.5s℃

环境温度 Ambient Temperature

-40~85℃

相当湿度 Relative Humidity

85%(at 40℃)

质(重)量 Mass

31g

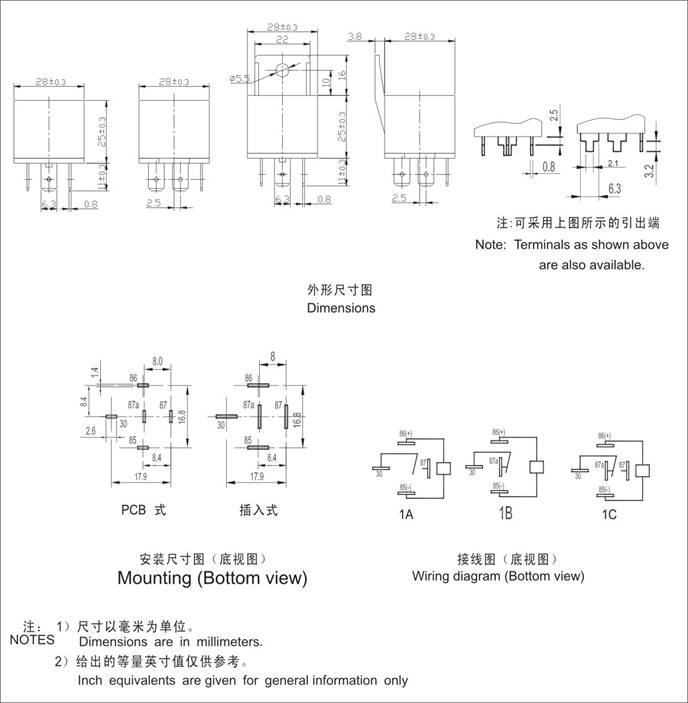

外形尺寸 Dimensions(mm/Inch)
